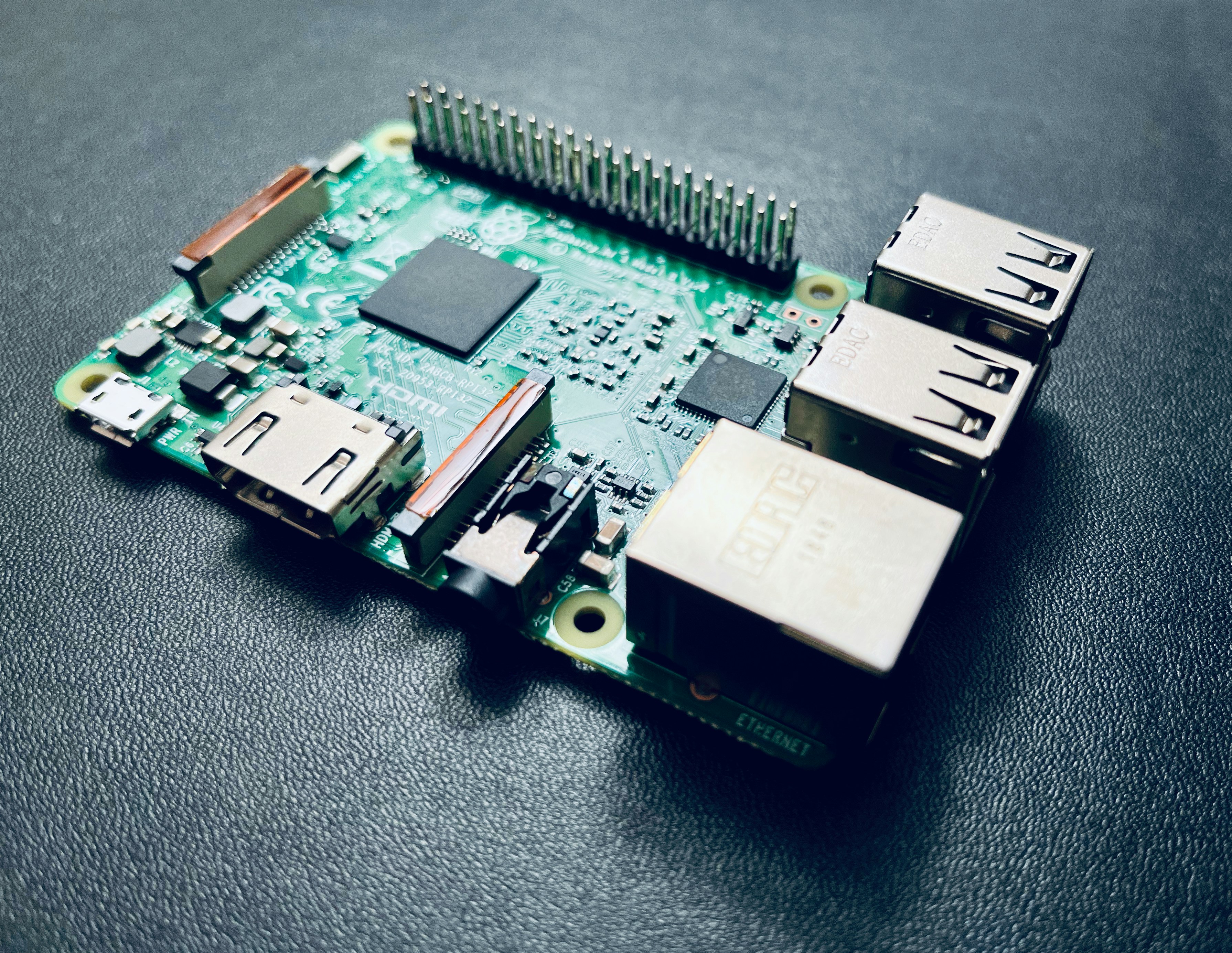

green and black circuit board

The single most effective step in Raspberry Pi troubleshooting is to verify your power supply voltage before touching a single line of code. Most “dead” Pis aren’t actually broken; they are simply starving for stable 5.1V power or suffering from a corrupted SD card that can be fixed in minutes.

We once watched a brilliant engineer spend three days debugging a complex Python script, only to discover the culprit was a frayed USB-C cable that dropped voltage to 4.2V under load. It turns out, the Red LED was the only clue we needed all along.

Did you know that over 40% of all reported Pi failures are actually caused by inadequate power delivery rather than hardware defects? This statistic alone should change how you approach every boot failure.

Key Takeaways

  • Power is Priority #1: Always check for a solid Red LED and stable 5.1V before assuming software or hardware failure.
  • The “7 Deadly Sins”: Most boot issues fall into seven categories: Power, SD Card, Overheating, HDMI, USB, Network, and Software.
  • Visual Diagnostics: Learn to read the Green LED dance to instantly identify if your OS is loading or if the card is corrupted.
  • Prevention Matters: Using a quality PSU, proper cooling, and safe shutdowns prevents the vast majority of common failures.

Table of Contents

⚡️ Quick Tips and Facts

Before we dive into the deep end of the troubleshooting pool, let’s grab a life preserver. At Why Pi™, we’ve seen more “dead” Pis than a graveyard of old toasters. Often, the problem isn’t a catastrophic hardware failure; it’s a simple oversight. Here are the golden rules we live by:

  • The “Red Light” Rule: If your Red Power LED isn’t solid, stop everything. It’s not a software issue; it’s a power issue. No voltage, no boot.
  • The “Green Light” Dance: A blinking green LED (ACT) is a good sign—it means the SD card is being read. A solid green or no green usually means the OS is missing or corrupted.
  • The HDMI Paradox: Did you know the Pi defaults to composite video if it doesn’t detect an HDMI handshake at boot? Plugging your monitor in after powering up often results in a black screen. Plug it in first!
  • The “Fresh Card” Myth: You can’t just slap an old SD card from a Pi 3 into a Pi 5 and expect magic. While sometimes it works, fresh formatting is almost always the safer bet.
  • The Multimeter is Your Best Friend: Never guess voltage. If you suspect power issues, grab a multimeter and check GPIO Pin 4 (5V) against Pin 6 (Ground).

For a deeper dive into the ecosystem that makes all this possible, check out our comprehensive guide on Raspberry Pi at Why Pi™.

📜 A Brief History of the Raspberry Pi: From Hobbyist Toy to Global Powerhouse

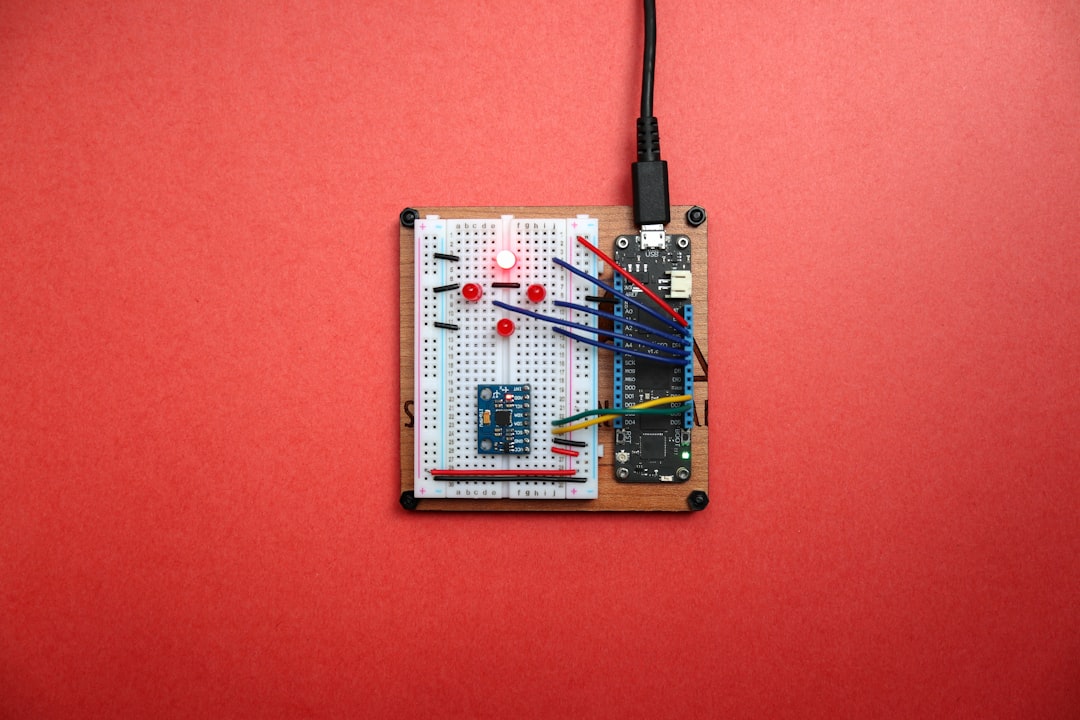

green and white circuit board

It’s hard to believe that a device designed to teach kids coding in a Cambridge classroom has become the backbone of industrial automation, retro gaming consoles, and even space satellites. The journey began in 206 when Eben Upton and his team at the Raspberry Pi Foundation wanted to create a computer so cheap that students wouldn’t be afraid to break it.

The first model, the Model B, launched in 2012. It was a marvel of engineering: a credit-card-sized board with a Broadcom BCM2835 processor, 256MB of RAM, and a price tag of $25. It sold out instantly.

Fast forward today, and we have the Raspberry Pi 5, a beast capable of desktop-class performance, dual 4K display support, and PCIe 2.0 interfaces. But with power comes complexity. As the hardware evolved, so did the troubleshooting landscape. What used to be a simple “check the SD card” fix now involves SPI EEPROM recovery, thermal throttling analysis, and power delivery nuances that would make an electrical engineer sweat.

Understanding this history helps us appreciate why certain quirks exist. For instance, the move from composite to HDMI-only on newer models (like the Pi 4 and 5) removed a legacy safety net, making the “plug-in-first” rule even more critical.

🚦 The 7 Deadly Sins of Raspberry Pi Boot Failures

We’ve all been there: you power up your project, and… nothing. Just a blank screen or a flickering rainbow. At Why Pi™, we categorize these failures into seven distinct “sins.” If you can identify which sin you’re committing, you’re halfway to salvation.

1. The Power Supply Paradox: Why Your Brick is Lying to You

This is the number one culprit. You bought a “5V” power supply, but is it actually delivering 5V under load?

Many cheap USB chargers claim to be 2.5A or 3A, but they sag the moment the Pi tries to boot. The Pi 4 and 5 are particularly picky. They require a stable 5.1V to 5.2V to operate correctly. If the voltage drops below 4.65V, the brownout detector kicks in, and the Pi resets or refuses to boot.

The Symptoms:

  • The Red LED flickers or turns off.
  • A lightning bolt icon appears in the top right corner of the screen (if you can see it).
  • The Pi boots, then immediately rebots in a loop.

The Fix:

  • Ditch the phone charger. Use a dedicated Raspberry Pi Official Power Supply or a high-quality Anker or UGREEN adapter rated for at least 3A (for Pi 4/5).
  • Check your USB-C cable. Not all USB-C cables are created equal. Some are “charge-only” or have high resistance. Use a cable rated for 3A or 5A data and power transfer.

👉 CHECK PRICE on:

2. SD Card Corruption: The Silent Killer of Your Boot Process

The SD card is the heart of your Pi. If the heart stops, the body dies. Corruption can happen due to improper shutdowns, power outages, or simply the natural wear and tear of flash memory.

The Symptoms:

  • No green LED activity.
  • A rainbow screen that never changes.
  • The Pi boots to a command line but hangs immediately.

The Fix:

  • Re-flash the OS: Use the Raspberry Pi Imager (the gold standard) to write a fresh image.
  • Check the Card: Use tools like H2testw (Windows) or F3 (Mac/Linux) to verify the card’s integrity. Many “fake” cards on Amazon report 64GB but are actually 8GB, leading to instant corruption.
  • Format Properly: Always use SD Formatter (from the SD Association) to perform a full format, not just a quick format.

3. Overheating: When Your Pi Turns into a Toasty Brick

The Raspberry Pi 5 is a powerhouse, but it runs hot. Without proper cooling, the CPU will thermal throttle (slow down) to protect itself, and in extreme cases, it will shut down completely.

The Symptoms:

  • The system is sluggish or freezes.
  • The green LED blinks rapidly in a specific pattern (indicating thermal warning).
  • The board feels too hot touch.

The Fix:

  • Active Cooling: For Pi 4 and 5, a fan is non-negotiable under load.
  • Heatsinks: Ensure you have high-quality copper or aluminum heatsinks covering the CPU, RAM, and power management chips.
  • Case Selection: Use a case with active airflow like the Flirc Case or the official Raspberry Pi 5 Active Cooler case.

👉 CHECK PRICE on:

4. HDMI Blackouts: Is It the Screen or the Signal?

You’ve checked the power, the SD card, and the cooling. The green LED is blinking, but the screen is black. This is usually a handshake issue.

The Symptoms:

  • Monitor says “No Signal.”
  • TV shows a “No Input” message.
  • The Pi seems to be running (fans spinning, LEDs active).

The Fix:

  • The “Cold Boot” Rule: Connect the HDMI cable before applying power.
  • Force HDMI: Edit the config.txt file on the SD card (using another computer) and add hdmi_force_hotplug=1.
  • Try a Different Cable: HDMI cables can fail internally. Try a known good cable.
  • Resolution Mismatch: If you’re using a 4K monitor, try forcing a lower resolution in config.txt (e.g., hdmi_group=2 and hdmi_mode=82 for 1080p).

5. USB Device Conflicts: The Peripherals That Won’t Play Nice

Sometimes, the problem isn’t the Pi; it’s the USB hub or the keyboard you plugged in. A shorted USB device can pull the 5V rail down, causing a boot failure.

The Symptoms:

  • The Pi boots fine without USB devices.
  • The Pi fails to boot immediately after plugging in a specific device.
  • The power LED flickers when a device is connected.

The Fix:

  • Unplug everything: Boot with only the power and HDMI connected. If it boots, add devices one by one.
  • Use a Powered Hub: If you have many devices, use a powered USB hub (like those from Sabrent or Anker) to offload the power draw from the Pi.
  • Check for Shorts: Inspect your USB devices for physical damage.

6. Network Woes: Why Your Pi Can’t Find the Internet

You can boot to the desktop, but you can’t get online. This is a classic network configuration or hardware issue.

The Symptoms:

  • Wi-Fi icon shows “No Internet.”
  • Ethernet link light is off.
  • SSH connections time out.

The Fix:

  • Check wpa_supplicant.conf: Ensure your Wi-Fi credentials are correct and the country code is set.
  • DHCP Issues: Try assigning a static IP in dhcpcd.conf.
  • Hardware Reset: Unplug the Pi, wait 10 seconds, and plug it back in. Sometimes the network controller just needs a hard reset.

7. Software Glitches: When the OS Just Gives Up

Sometimes the hardware is fine, but the software is a mess. This happens after a bad apt upgrade or a botched kernel update.

The Symptoms:

  • The Pi boots to a black screen with a blinking cursor.
  • You get a “Kernel Panic” error.
  • The system hangs at the “Welcome to Raspberry Pi” screen.

The Fix:

  • Recovery Mode: Boot into Recovery Mode (if available) or use a second SD card with a fresh OS to access the files on the broken card.
  • Rollback: If you recently updated, try booting with an older kernel version by editing cmdline.txt.
  • Reinstall: Sometimes, a fresh install is the only way to go.

🛠️ Diagnosing the Red and Green LED Dance: A Visual Guide


Video: Raspberry Pi Network Troubleshooting.







The LEDs on your Raspberry Pi are its way of talking to you. If you learn their language, you can diagnose 90% of problems without a single command.

LED Color State Meaning Action Required
Red Solid Power is good (5V+). Proceed to check Green LED.
Red Off No power or voltage too low (<4.65V). Check power supply and cable.
Red Flickering Power is unstable or brownout. Upgrade PSU to 3A+; check cable.
Green Off No SD card or unreadable card. Check SD card seating; re-flash OS.
Green Blinking Booting from SD card (Good!). Wait for boot to complete.
Green Solid Boot process stalled or frozen. Check for overheating or software crash.
Green Rapid Flash Thermal warning or SD card error. Check cooling; re-flash SD card.

Pro Tip: On the Pi 4 and 5, the green LED behavior can be slightly different depending on the bootloader version. If you see a rapid, erratic blink, it often indicates a bootloader mismatch or a corrupted EEPROM.

🔧 Essential Tools for Raspberry Pi Troubleshooting


Video: Raspberry Pi: Green Vs. Red Lights | Error Codes.








You can’t fix what you can’t measure. Here is the Why Pi™ engineer’s toolkit:

  1. Multimeter: Essential for checking voltage on GPIO pins. A cheap Fluke or Aneng meter works wonders.
  2. Raspberry Pi Imager: The official tool for writing OS images. It has built-in OS customization features.
  3. SD Card Formatter: From the SD Association. Don’t use Windows’ built-in formatter; it’s too aggressive.
  4. HDMI Tester: A simple cable tester can save you hours of frustration.
  5. Thermal Camera (Optional): For spotting hot spots on the board. The FLIR One is a great entry-level option.
  6. USB-C Power Analyzer: Devices like the Raspberry Pi USB-C Power Monitor or Cable Matters analyzers show real-time voltage and current draw.

👉 CHECK PRICE on:

🔄 Step-by-Step Recovery: Fixing a Bricked SD Card


Video: Fix Black screen on boot | No video output | Raspberry Pi Guide.








So, you’ve bricked your SD card. Don’t panic. Here is the Why Pi™ recovery protocol:

  1. Remove the SD Card: Power off the Pi and eject the card.
  2. Insert into a PC: Use a card reader.
  3. Check Visibility: Does the computer see the card?
    No: The card is likely dead. Try a different reader or PC. If still no, the card is toast.
    Yes: Proceed to step 4.
  4. Backup Data (If possible): If the card mounts, copy your important files immediately.
  5. Format the Card: Use SD Formatter. Select “Overwrite” for a full format.
  6. Re-flash OS: Use Raspberry Pi Imager to write a fresh OS.
  7. Test: Insert the card back into the Pi and power on.

What if the Pi 4/5 won’t boot even with a fresh card?
You might need to reprogram the SPI EEPROM.

  1. Download the bootloader recovery image from the Raspberry Pi website.
  2. Write it to a different SD card.
  3. Insert the recovery card into the Pi.
  4. Power on. The green LED should flash rapidly.
  5. Once the process is complete, remove the recovery card and re-insert your main OS card.

🌡️ Thermal Management: Cooling Solutions That Actually Work


Video: HELP!!! Raspberry Pi stuck in a boot-loop!








Heat is the enemy of electronics. The Raspberry Pi 5 can reach 80°C+ under load without cooling. Here’s how to keep it cool:

  • Passive Cooling: Good for light tasks. Use a heatsink case like the Argon ONE M.2 or Flirc Case.
  • Active Cooling: Essential for gaming, media servers, or heavy computing. The official Raspberry Pi Active Cooler is a must-have for the Pi 5.
  • Thermal Paste: Apply a thin layer of high-quality thermal paste (like Arctic MX-4) between the CPU and the heatsink for better heat transfer.

Myth Buster: “The Pi doesn’t need a fan if I’m just running a simple script.”
Reality: Even simple scripts can spike the CPU. If you’re running a web server or a database, the Pi will throttle without a fan.

🔌 Power Management: Choosing the Right PSU for Your Model


Video: 5 things to try if your Raspberry Pi won’t boot.








Not all power supplies are created equal. Here’s a quick guide:

Model Recommended Voltage Recommended Current Notes
Pi Zero / Zero 2 W 5.1V 1.2A Micro-USB input.
Pi 3 Model B+ 5.1V 2.5A USB-C input.
Pi 4 Model B 5.1V 3.0A USB-C input.
Pi 5 5.1V 5.0A USB-C input (PD 27W recommended).

Why 5.1V? The Pi’s voltage regulator drops the voltage to 5V. If you supply exactly 5V, the regulator might not work correctly under load. 5.1V ensures a stable 5V at the board.

👉 CHECK PRICE on:

📡 Network Connectivity Issues: Wi-Fi, Ethernet, and SSH Failures


Video: 【SOLVED 】 Only Red Light is Work on Raspberry Pi ( Boot issue ).








Network issues are tricky because they can be hardware, software, or configuration.

Wi-Fi Troubleshooting:

  1. Check wpa_supplicant.conf: Ensure the country code is set (e.g., country=US).
  2. Restart the Network Manager: sudo systemctl restart NetworkManager.
  3. Check for Interference: Move the Pi away from other electronics.

Ethernet Troubleshooting:

  1. Check the Cable: Try a different Ethernet cable.
  2. Check the Switch/Router: Ensure the port is active.
  3. Check dmesg: Run dmesg | grep eth to see if the kernel detects the Ethernet controller.

SSH Failures:

  1. Enable SSH: Create an empty file named ssh on the boot partition of the SD card.
  2. Check Firewall: Ensure port 2 is open.
  3. Check IP Address: Use hostname -I to find the IP.

💾 Data Recovery: Saving Your Projects When Things Go Wrong


Video: Raspberry Pi 5 Corrupted Boot Error?








If your SD card is corrupted but you need your data:

  1. Don’t Write to the Card: Stop using it immediately.
  2. Use ddrescue: This tool can clone a failing drive to a healthy one.
sudo ddrescue /dev/sdX /dev/sdY recovery.log
  1. Mount the Image: Once cloned, mount the image and copy your files.
  2. Use PhotoRec: For file-level recovery if the filesystem is gone.

🛡️ Preventative Maintenance: Keeping Your Pi Running Smoothly


Video: Troubleshooting the Raspberry Pi Zero W and After Accidentally Power Cycling It.








Prevention is better than cure. Here’s our Why Pi™ maintenance checklist:

  • Regular Backups: Use rsync or Timeshift to back up your system weekly.
  • Safe Shutdowns: Always use sudo shutdown -h now or the GUI shutdown option. Never just pull the plug.
  • Monitor Temperatures: Install vcgencmd or a GUI tool like Cockpit to monitor temps.
  • Update Regularly: Run sudo apt update && sudo apt upgrade monthly.
  • Use a UPS: A Raspberry Pi UPS HAT can protect against power outages.

👉 CHECK PRICE on:

🤔 Common Myths and Misconceptions About Pi Failures


Video: Pi 4B not booting. Eeprom fix test.








Let’s bust some myths:

  • Myth: “The Pi is indestructible.”
    Fact: It’s fragile. ESD (static electricity) can kill it instantly. Always ground yourself.
  • Myth: “Any 5V power supply will work.”
    Fact: No. It needs to be stable and high-current. A 1A phone charger will cause brownouts.
  • Myth: “I can use any SD card.”
    Fact: Cheap, no-name cards often fail. Stick to SanDisk, Samsung, or Kingston brands.
  • Myth: “If it worked yesterday, it will work today.”
    Fact: SD cards degrade. Power surges happen. Always have a backup plan.

🏁 Conclusion

red and white circuit board

Troubleshooting a Raspberry Pi can feel like solving a puzzle with missing pieces, but with the right approach, you can solve almost any issue. Remember the 7 Deadly Sins: Power, SD Card, Heat, HDMI, USB, Network, and Software. By systematically checking each one, you’ll get your Pi back on track.

We started this journey by asking, “Why won’t my Pi turn on?” and now you know the answer is rarely one thing. It’s a combination of voltage stability, card integrity, and thermal management. Whether you’re a hobbyist building a retro console or an engineer deploying a fleet of sensors, understanding these fundamentals is key.

Don’t let a blinking red LED scare you. Embrace the challenge, grab your multimeter, and keep building. The world of DIY Electronics is waiting for you.

Here are some essential resources and products to keep your Pi running smoothly:

❓ FAQ

green and black circuit board

How do I troubleshoot a Raspberry Pi project that is not working as expected?

Start with the basics: check the power supply, ensure the SD card is properly seated, and verify the HDMI connection. If the red LED is off, it’s a power issue. If the green LED isn’t blinking, it’s an SD card issue.

Read more about “Discover the Ultimate Raspberry Pi 4 Kits on Amazon: 10 Must-Have Options for 2024! 🚀”

How can I resolve network connectivity issues on my Raspberry Pi?

Check your wpa_supplicant.conf file for correct Wi-Fi credentials and country code. For Ethernet, try a different cable. If using SSH, ensure the ssh file is present on the boot partition.

Read more about “🚀 10 Ultimate Raspberry Pi Projects & Secrets (2026)”

What are the steps to troubleshoot a Raspberry Pi with a faulty SD card?

  1. Remove the card and try it in another computer.
  2. Use SD Formatter to reformat.
  3. Re-flash the OS using Raspberry Pi Imager.
  4. If the card is physically damaged, replace it.

What are some common mistakes to avoid when setting up and troubleshooting a Raspberry Pi project?

  • Using a low-quality power supply.
  • Not backing up your SD card.
  • Pulling the power plug instead of shutting down properly.
  • Using a cheap, unbranded SD card.

How do I identify and fix power supply problems with my Raspberry Pi?

Use a multimeter to check the voltage on GPIO Pin 4. It should between 5.1V and 5.2V. If it’s lower, replace the power supply and cable.

What are the steps to troubleshoot Wi-Fi connectivity issues on Raspberry Pi?

  1. Check wpa_supplicant.conf.
  2. Restart the network manager: sudo systemctl restart NetworkManager.
  3. Ensure the Pi is within range of the router.
  4. Check for interference from other devices.

Read more about “🤖 10 Epic Raspberry Pi AI & ML Projects to Build in 2026”

How can I fix a Raspberry Pi with a faulty SD card or corrupted OS?

Re-flash the OS using Raspberry Pi Imager. If the card is physically damaged, replace it. For data recovery, use ddrescue to clone the card.

Read more about “🚀 The Ultimate Raspberry Pi Beginner Guide: 12 Models & Projects (2026)”

Why is my Raspberry Pi overheating and how can I prevent it?

The Pi 4 and 5 run hot under load. Use a heatsink and fan. Ensure the case has good airflow. Monitor temperatures with vcgencmd measure_temp.

Read more about “🚀 How to Set Up a Raspberry Pi for Beginners: The Ultimate 2026 Guide”

How do I troubleshoot a Raspberry Pi that won’t boot?

Check the LEDs. Red off = power issue. Green not blinking = SD card issue. If both are good, try a different HDMI cable or monitor.

Read more about “🚀 The Ultimate Raspberry Pi Setup Guide (2026): From Zero to Hero”

How do I troubleshoot and fix Wi-Fi connectivity issues on my Raspberry Pi?

See the answer above for network connectivity. Also, try setting a static IP in dhcpcd.conf.

What are some common boot issues with Raspberry Pi and how to resolve them?

  • Rainbow screen: Corupted OS or SD card. Re-flash.
  • Black screen: HDMI handshake issue. Force HDMI in config.txt.
  • Boot loop: Power issue or overheating. Check PSU and cooling.

Read more about “16+ SBC Wonders: Your 2026 Guide! 🚀”

How can I identify and resolve overheating problems with my Raspberry Pi?

Use vcgencmd measure_temp to check the temperature. If it’s above 80°C, add a fan or heatsink.

Read more about “Unlock Pi Power: Your 7-Step Cluster Tutorial! 💡”

What are the steps to troubleshoot SD card issues on a Raspberry Pi?

  1. Check if the computer sees the card.
  2. Format with SD Formatter.
  3. Re-flash the OS.
  4. Replace the card if it’s physically damaged.

Read more about “🚀 10 Best Raspberry Pi Operating Systems for 2026: Dual Boot & Beyond”

Why won’t my Raspberry Pi turn on and what can I do to fix it?

Check the power supply and cable. Ensure the red LED is on. If not, try a different PSU.

How do I troubleshoot connectivity problems on my Raspberry Pi?

Check cables, restart the network manager, and verify configuration files.

Read more about “🤖 25+ Amazing Things You Can Do with a Raspberry Pi (2026)”

What are the most common issues with Raspberry Pi and how to fix them?

Power issues, SD card corruption, and overheating are the most common. Use a quality PSU, backup your SD card, and ensure proper cooling.

Read more about “🚀 Microcontroller Programming: The Ultimate 2026 Guide to Building Smart Devices”

Review Team
Review Team

The Popular Brands Review Team is a collective of seasoned professionals boasting an extensive and varied portfolio in the field of product evaluation. Composed of experts with specialties across a myriad of industries, the team’s collective experience spans across numerous decades, allowing them a unique depth and breadth of understanding when it comes to reviewing different brands and products.

Leaders in their respective fields, the team's expertise ranges from technology and electronics to fashion, luxury goods, outdoor and sports equipment, and even food and beverages. Their years of dedication and acute understanding of their sectors have given them an uncanny ability to discern the most subtle nuances of product design, functionality, and overall quality.

Articles: 216

Related Posts

Leave a Reply

Your email address will not be published. Required fields are marked *

Trending now

green and black circuit board
Best OS for your Raspberry Pi?
Unlocking Pi: 10 Mind-Blowing Facts & Uses You Didn’t Know! 🔢 (2026)
What Is Pi Value π? 15 Mind-Blowing Facts You Didn’t Know (2026) 🥧
Featured image for What Is the Value of Pi to 1 Million Decimal Places 2025
🧮 Pi to 1 Million Digits: The Full Value & How to Calculate It (2026)
